I. Introduction

The selection of an appropriate manufacturing process is a pivotal decision that significantly impacts a product’s cost, quality, and time-to-market. Engineers, product developers, and procurement specialists constantly weigh the merits of various fabrication methods to find the optimal balance for their specific needs. Among the most prevalent and versatile manufacturing techniques are metal stamping and injection molding, each offering distinct advantages and cost structures.

This article aims to provide a detailed and professional cost analysis comparing metal stamping and injection molding. While both processes are explored, our primary focus is to illuminate the nuances for an audience deeply interested in the Stamping Process. We will address common questions and clarify the financial implications, helping those considering or currently utilizing metal stamping to make informed decisions and understand where their investments yield the greatest returns.

II. Understanding Metal Stamping

A. What is Metal Stamping?

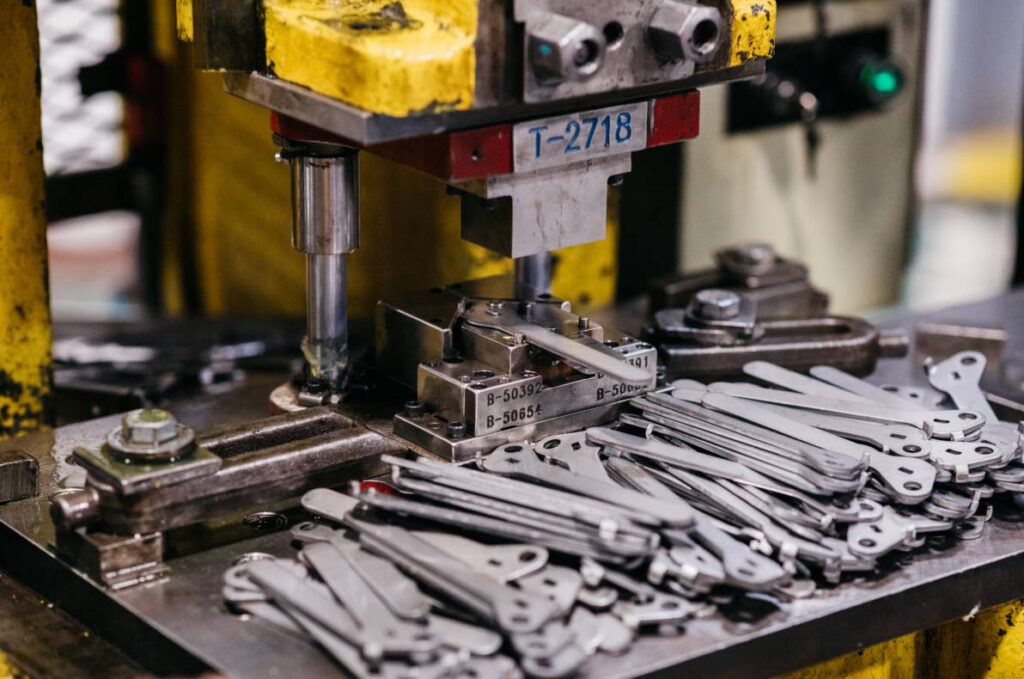

Metal stamping is a cold-forming manufacturing process that transforms flat sheet metal into specific shapes using a press and a die. It involves placing sheet metal, either in blank or coil form, into a stamping press where a tool and die surface form the metal into a net-shape part. This process can include a variety of operations such as blanking (cutting out a flat piece), piercing (creating holes), bending (forming angles), coining (creating fine details), and deep drawing (forming complex 3D shapes). Progressive stamping, a highly efficient form of the Stamping Process, uses a series of stations to perform multiple operations sequentially on a continuous strip of material, resulting in a finished part with each stroke of the press.

B. Key Advantages of Metal Stamping

For a metal stamping manufacturer, the advantages of this process are clear, especially for high-volume production:

• High-Volume Production Efficiency and Speed: Stamping presses operate at extremely high speeds, producing thousands of metal stamping parts per hour, making it exceptionally efficient for mass production.
• Cost-Effectiveness for Large Runs: Once the initial tooling investment is made, the per-part cost becomes very low, leading to significant savings over large production quantities.
• Material Strength and Durability: Metal stamping parts retain the inherent strength and integrity of the original metal, offering superior durability and performance compared to many molded plastic alternatives.
• Tight Tolerances and Repeatability: The precision of stamping dies allows for the production of parts with very tight dimensional tolerances and excellent part-to-part consistency, crucial for assemblies.
• Material Utilization and Waste Reduction: With optimized die design and nesting strategies, the Stamping Process can achieve high material utilization rates, minimizing scrap and reducing overall material costs.

C. Common Applications of Metal Stamping

The versatility of metal stamping services makes it indispensable across numerous industries. Common applications include automotive components (brackets, frames, body panels), electronic connectors and enclosures, appliance parts, medical device components, and aerospace parts, where strength, precision, and high volume are critical.

III. Understanding Injection Molding

A. What is Injection Molding?

Injection molding is a manufacturing process for producing parts by injecting molten material into a mold. Typically used with thermoplastic and thermosetting polymers, it can also be used with metals (Metal Injection Molding – MIM) and ceramics. The material is fed into a heated barrel, mixed, and then forced into a mold cavity, where it cools and hardens to the configuration of the cavity.

B. Key Advantages of Injection Molding

Injection molding offers distinct benefits, particularly for complex geometries:

• Complex Part Geometries and Intricate Designs: It excels at producing parts with highly complex shapes, internal features, and varying wall thicknesses in a single shot.
• Ability to Integrate Multiple Features: Multiple components can often be designed into a single molded part, reducing assembly steps and part count.
• Good Surface Finish: Injection molded parts typically have a smooth, aesthetically pleasing surface finish directly from the mold, often requiring no secondary finishing.
• Reduced Assembly Operations: Due to the ability to create complex, multi-functional parts, the need for assembly of individual components is often significantly reduced.

C. Common Applications of Injection Molding

Injection molding is widely used for consumer goods (toys, containers), automotive interior components (dashboards, trim), medical plastics (syringes, device housings), and various electronic casings.

IV. Cost Analysis: A Comparative Breakdown

When comparing the costs of metal stamping and injection molding, it’s essential to look beyond just the per-part price and consider the entire lifecycle cost, including tooling, materials, production, and secondary operations.

A. Tooling Costs (Molds vs. Dies)

The initial investment in tooling is often the most significant upfront cost for both processes, but there are crucial differences.

• Metal Stamping Dies: Stamping dies are precision-engineered tools, often made from hardened steel. Their complexity varies significantly from simple blanking dies to intricate progressive dies that perform multiple operations.
  • Cost Factors: Design complexity, material (e.g., carbide for high wear resistance), machining precision, and lead time.
  • Typical Cost Ranges: Simple dies can range from $5,000 to $50,000, while complex progressive dies for high-volume production can easily reach $100,000 to $500,000 or more.
  • Cost Implications for Stamping Users: While the initial outlay can be substantial, a well-maintained die from a reputable metal stamping manufacturer can produce millions of parts over its lifespan, leading to an extremely low tooling cost per part. This long lifespan and high output capacity are key reasons why a metal stamping company is often chosen for large-scale projects.
• Injection Molds: Injection molds are also precision tools, often made from steel or aluminum, with cavities that define the part’s shape.
  • Cost Factors: Part complexity, number of cavities (single vs. multi-cavity), mold material, hot runner systems, and lead time.
  • Typical Cost Ranges: Simple single-cavity molds can start from $2,000 to $10,000, but complex multi-cavity molds for intricate parts can range from $50,000 to over $1,000,000.
  • Comparative Insight: For parts of similar complexity, injection molds often have a higher initial tooling cost than stamping dies, especially when multiple cavities are required to meet production volumes.

Here’s a simplified comparison of tooling cost ranges:

B. Material Costs

Material costs are a significant component of the total cost and vary widely between metals and plastics.

• Metal Stamping: The cost of raw sheet metal (e.g., steel, aluminum, brass, copper) fluctuates based on market prices, alloy type, and thickness. While metals are generally more expensive per pound than most plastics, efficient nesting and scrap recycling can mitigate this.
• Injection Molding: Plastic resins range from inexpensive commodity plastics (e.g., PP, PE) to high-performance engineering plastics (e.g., PEEK, Ultem) that can be quite costly. The volume of material per part also plays a role.
• Comparative Analysis: Generally, the raw material cost per part for metal stamping can be higher than for injection molding, especially for lighter plastic parts. However, the superior strength and performance of metal stamping parts often justify this difference.

C. Production/Run Costs

These costs encompass the expenses incurred during the actual manufacturing run, excluding tooling and materials.

• Cycle Time: Stamping presses operate at extremely high speeds, with cycle times often measured in fractions of a second per part. Injection molding cycle times, while efficient, are typically longer, ranging from a few seconds to minutes, depending on part size, material, and cooling requirements.
• Labor Costs: Both processes benefit from high levels of automation. However, for very high volumes, the sheer speed of stamping often means less direct labor cost per part.
• Energy Consumption: Large stamping presses and injection molding machines both require substantial energy. The specific energy consumption per part depends on machine efficiency, cycle time, and material processing requirements.
• Maintenance: Dies and molds require regular maintenance, repair, and occasional refurbishment. The cost of this maintenance should be factored into the long-term operational expenses.

D. Secondary Operations & Finishing

The final cost of a part often includes operations performed after the primary forming process.

• Metal Stamping: Metal stamping parts may require secondary operations such as deburring, heat treatment, plating (e.g., zinc, nickel), painting, powder coating, or assembly. These processes add to the per-part cost and lead time. A comprehensive metal stamping service often includes these value-added operations.
• Injection Molding: Injection molded parts typically come out of the mold with a good surface finish and often require fewer secondary operations. However, gate removal, painting, printing, or assembly might still be necessary.
• Cost Implications for Stamping Users: While stamping might necessitate more secondary operations, the inherent properties of metal (e.g., conductivity, strength) often make these steps unavoidable and essential for the part’s functionality and longevity. A good metal stamping company will offer a full suite of metal stamping services to streamline this process.

E. Volume Considerations & Break-Even Point

The production volume is arguably the most critical factor in determining the cost-effectiveness of metal stamping versus injection molding.

• Break-Even Point: This is the volume at which the total cost of producing parts by one method equals the total cost of producing them by another. Due to the higher initial tooling cost but lower per-part cost, metal stamping typically has a higher break-even point than injection molding for parts of similar complexity.
• High-Volume Efficiency: For very high production volumes (tens of thousands to millions of parts annually), metal stamping almost always becomes the more cost-effective choice. The low per-part cost, driven by rapid cycle times and efficient material utilization, quickly offsets the higher initial die investment. A metal stamping manufacturer thrives on these economies of scale.

V. Design Considerations Impacting Cost

The design of the part itself plays a crucial role in determining the overall manufacturing cost for both processes.

• A. Part Complexity and Geometry:
  • Stamping: Highly complex 3D forms or parts with very tight radii can significantly increase the complexity and cost of stamping dies. The Stamping Process is best suited for parts that can be formed from sheet metal without excessive stretching or tearing.
  • Molding: Injection molding excels at producing intricate, multi-dimensional parts with varying wall thicknesses and integrated features. However, overly complex designs can lead to more expensive molds, longer cycle times, and potential molding defects.
  • For Stamping Users: Embracing “Design for Manufacturability” (DFM) principles is paramount in stamping. Simple design adjustments can drastically reduce die complexity, material waste, and the overall cost of metal stamping parts.
• B. Material Selection:
  • The specific metal alloy chosen for stamping impacts not only material cost but also tooling wear and formability. Harder, more abrasive metals can increase die maintenance costs.
  • For injection molding, the chosen plastic resin affects mold design (e.g., shrinkage rates), cycle time (e.g., cooling time), and the overall material cost.
• C. Tolerances and Finish Requirements:
  • Tighter dimensional tolerances demand higher precision in both die/mold manufacturing and process control, increasing costs. Metal stamping is renowned for its ability to hold very tight tolerances consistently, making it ideal for precision metal stamping parts.
  • Surface finish requirements can also impact cost. While injection molding often produces good finishes inherently, stamping may require additional finishing operations to achieve desired aesthetics or functional surfaces.

VI. When to Choose Metal Stamping (for the “Stamping Process” User)

For those focused on the Stamping Process, here are the scenarios where it typically shines:

• High Production Volumes: If you require tens of thousands to millions of parts annually, metal stamping offers unparalleled cost efficiency due to its speed and low per-part cost.
• Need for High Strength and Durability: When your application demands the inherent strength, rigidity, and long-term durability that only metal can provide, metal stamping parts are the clear choice.
• Consistent Part-to-Part Repeatability: For applications requiring extremely tight tolerances and consistent dimensional accuracy across large production runs, the precision of the Stamping Process is highly advantageous.
• Specific Material Properties: If your part needs specific electrical conductivity, thermal properties, corrosion resistance, or magnetic properties that are best achieved with metal, stamping is the way to go.
• Cost-Effectiveness at Scale: While the initial tooling investment can be significant, the long-term cost benefits for mass-produced metal stamping parts are often superior to injection molding. Partnering with an experienced metal stamping company or metal stamping manufacturer that offers comprehensive metal stamping services can further optimize these advantages.

VII. Conclusion

The decision between metal stamping and injection molding is a complex one, influenced by a multitude of factors, with cost being a primary consideration. While injection molding excels at producing complex plastic parts with integrated features, metal stamping stands out for its exceptional efficiency and cost-effectiveness in high-volume production of durable, precise metal components.For users deeply invested in the Stamping Process, understanding this cost analysis is crucial. Despite potentially higher upfront tooling costs for dies, the long-term per-part savings, material strength, and consistent precision offered by metal stamping make it an incredibly powerful and often superior manufacturing method for mass-produced metal parts. By carefully evaluating tooling, material, production, and secondary operation costs in conjunction with production volume and part requirements, you can strategically choose the process that delivers the best value and performance for your product.
