Introduction

Choosing the right manufacturing process is critical for achieving your project’s goals in terms of quality, cost, and efficiency. CNC machining services and 3D printing are two leading technologies, each offering unique benefits for different applications. CNC machining, a subtractive process, removes material from a solid block to create precise, durable parts. In contrast, 3D printing, an additive process, builds parts layer by layer from a digital model, excelling in rapid prototyping and complex designs. This article compares these methods to help users seeking CNC machining services decide which is best for their project, addressing common questions about precision, materials, and costs.

Overview of CNC Machining

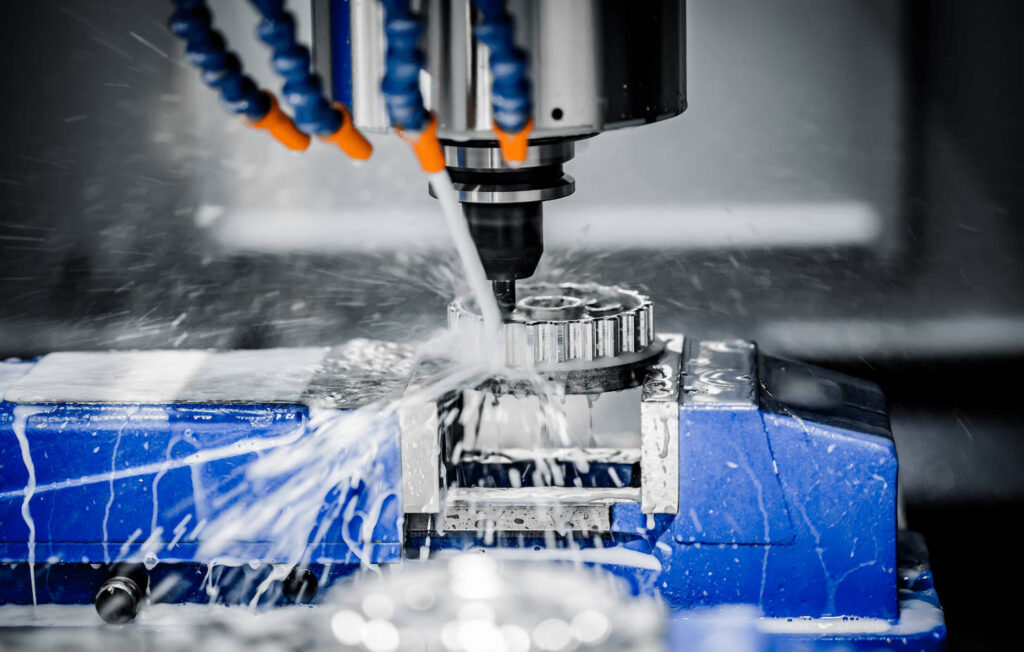

CNC machining, or Computer Numerical Control machining, uses computer-controlled tools like mills, lathes, and grinders to shape parts from a solid material block. Processes include milling (cutting material with rotating tools), turning (rotating the workpiece against a tool), and drilling (creating holes). A CNC machining company can produce parts with exceptional accuracy, making it a go-to choice for industries requiring reliability.

Advantages of CNC Machining

• Precision: Precision CNC machining achieves tolerances as tight as ±0.01 mm, ideal for critical applications.
• Material Versatility: Works with metals (aluminum, steel, titanium), plastics (ABS, PEEK), and composites.
• Strength: Parts retain the material’s inherent strength, ensuring durability.
• Surface Finish: Produces smooth surfaces, often eliminating post-processing needs.

Limitations

• Setup Time: Complex designs require longer setup and multiple tool changes.
• Cost for Complex Geometries: Intricate shapes can increase costs due to additional machining steps.
• Material Waste: Subtractive nature generates scrap, impacting sustainability.

Typical Uses

Custom CNC machining is widely used in:

• Aerospace: Turbine blades, structural components.
• Automotive: Engine parts, transmission components.
• Medical: Surgical instruments, implants.
• Electronics: Precision housings, connectors (CNC Machining Applications).

Overview of 3D Printing

3D printing, or additive manufacturing, constructs parts by depositing material layer by layer based on a digital model. Common methods include Fused Deposition Modeling (FDM) for plastics, Stereolithography (SLA) for high-detail resins, and Selective Laser Sintering (SLS) for metals and nylons. It’s popular for its flexibility in prototyping and small-scale production.

Advantages of 3D Printing

• Complex Geometries: 3D printing excels in creating intricate designs, such as lattice structures or internal channels.
• Rapid Prototyping: Quick turnaround for iterative designs.
• Customization: Easily produces unique or one-off parts without additional cost.
• Low Setup Time: Minimal preparation for small runs.

Limitations

• Material Options: Limited to plastics (ABS, PLA, nylon) and select metals (stainless steel, titanium), fewer than CNC machining.
• Strength: Parts may have anisotropic properties, weaker in certain directions.
• Surface Finish: Often requires post-processing to achieve smoothness.

Typical Uses

3D printing is used for:

• Prototyping: Concept models, functional prototypes.
• Medical: Custom implants, dental models.
• Consumer Goods: Bespoke products, jewelry.
• Architecture: Detailed scale models (3D Printing Overview).

Key Comparison Factors

CNC machining and 3D printing differ significantly in precision, materials, complexity, speed, and cost, impacting their suitability for your project.

Precision and Accuracy

• CNC Machining: Achieves tolerances as tight as ±0.01 mm, critical for functional parts in aerospace or medical devices.
• 3D Printing: Typically offers ±0.1 mm tolerances, suitable for prototypes but less precise for final parts.

Material Options

• CNC Machining: Handles a wide range, including aluminum, steel, titanium, brass, copper, and plastics like ABS, PEEK, and polycarbonate.
• 3D Printing: Primarily plastics (ABS, PLA, nylon) and limited metals, restricting options for high-strength applications.

Complexity and Design Freedom

• CNC Machining: Best for simpler, robust designs; complex shapes may require multiple setups, increasing costs.
• 3D Printing: Ideal for complex geometries, like internal channels or lattice structures, without additional cost.

Production Speed

• CNC Machining: Longer setup but faster for large volumes once configured.
• 3D Printing: Quick for single units or small batches, slower for large-scale production.

Cost

• CNC Machining: Higher setup costs but lower per-unit costs for large runs, making it economical for high-volume production.
• 3D Printing: Lower setup costs, cost-effective for prototypes or small batches.

When to Choose Each Method

Choose CNC Machining When

• You need precision CNC machining for tolerances below ±0.1 mm.
• Your project requires metals or high-performance plastics.
• Parts must withstand high stress or wear, like engine components.
• You’re producing large quantities, leveraging economies of scale.

Choose 3D Printing When

• You need rapid prototypes or concept models.
• Designs are complex, with internal features or unique shapes.
• You’re producing small batches or single units.
• Budget limits initial setup costs.

Decision-Making Framework

To select the right process, use this checklist:

• Precision: Need tolerances tighter than ±0.1 mm? Choose CNC machining services.
• Material: Using metals or engineering plastics? Opt for a CNC machining factory.
• Complexity: Require intricate designs or internal features? 3D printing is likely better.
• Volume: Producing over 100 units? Custom CNC machining may be more cost-effective.
• Budget: Need low upfront costs? 3D printing is preferable.

Example Scenarios

• Scenario 1: A startup needs 10 prototype housings for a new device. Recommendation: 3D printing for quick, cost-effective prototyping.
• Scenario 2: An automotive company needs 5,000 engine brackets with precise dimensions. Recommendation: CNC machining services for strength and precision.

Common Questions and Answers

1. Can 3D printing match the precision of CNC machining?
   • 3D printing cannot match the ±0.01 mm tolerances of precision CNC machining, making CNC the choice for high-accuracy parts (Precision Machining).
2. What materials can a CNC machining company handle?
   • A CNC machining company can process metals (aluminum, steel, titanium), plastics (ABS, PEEK), and composites, offering versatility for diverse applications.
3. Is CNC machining viable for small runs?
   • Yes, custom CNC machining is flexible for small runs, though 3D printing may be more economical for very low quantities due to lower setup costs.
4. How do I choose a reliable CNC machining supplier?
   • Select a CNC machining supplier with ISO 9001 certification, industry experience, and positive reviews to ensure quality and reliability.
5. What is the lead time for CNC machining services?
   • Standard CNC machining services typically deliver in 1-2 weeks, with rush options for faster turnaround.
6. How do surface finishes compare?
   • CNC machined parts have smoother finishes, while 3D printed parts may show layer lines, requiring post-processing.
7. Can CNC machining be as fast as 3D printing?
   • For single units, 3D printing is faster; for larger volumes, CNC machining is more efficient post-setup.
8. Are there environmental considerations?
   • CNC machining generates waste, while 3D printing uses only necessary material, potentially making it more sustainable.

Conclusion

CNC machining and 3D printing offer distinct advantages for manufacturing. Precision CNC machining excels in producing high-strength, precise parts for large-scale or demanding applications, while 3D printing is ideal for rapid prototyping and complex designs. By evaluating precision, material, complexity, volume, and budget, you can choose the best method. Partnering with a reputable CNC machining factory ensures tailored solutions for your project’s success.
