1. Introduction

The stamping process is a bedrock of modern manufacturing, responsible for producing a vast array of metal components we use daily, from car doors to electronic connectors. At the heart of this process is the stamping press, a machine that applies immense force to shape or cut material with precision and speed. The success, efficiency, and cost-effectiveness of a manufacturing operation often hinge on selecting the right type of press for the job.

This article serves as a comprehensive guide to help manufacturers, engineers, and production managers navigate the critical choice between the two primary options: mechanical and hydraulic stamping presses. By understanding their fundamental differences, advantages, and limitations, you can make an informed decision that aligns with your specific stamping needs, ensuring optimal performance and return on investment.

2. Understanding the Stamping Process

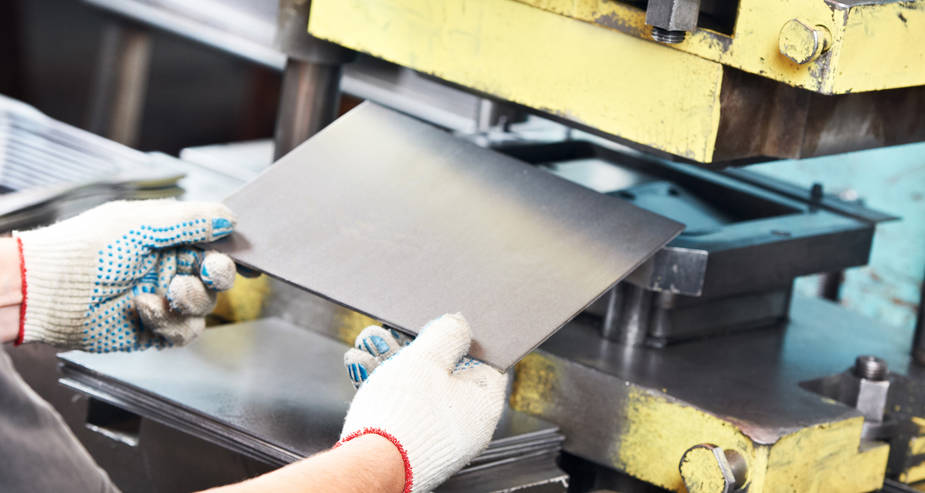

In manufacturing, stamping (also known as pressing) is a forming process that uses a die and a press to shape, cut, or deform a workpiece, typically a flat sheet of metal. The die provides the desired shape, and the press provides the force needed to create the final part.

Stamping is ubiquitous across numerous industries due to its high production rate and repeatability. Common applications include:

• Automotive: Body panels, brackets, structural components, and engine parts.
• Aerospace: Airframe components, fasteners, and turbine engine parts made from high-strength alloys.
• Electronics: Casings, connectors, terminals, and circuit board components.
• Appliances: Housings for washing machines, refrigerators, and ovens.

For stamping to be effective, several key requirements must be met:

• Precision: The press must guide the die accurately to produce parts within tight tolerances consistently.
• Speed: For high-volume production, the press must be able to cycle quickly and reliably.
• Material Compatibility: The press must be capable of exerting the necessary force to form the specific type and thickness of the material being used.

3. Overview of Mechanical Stamping Presses

How Mechanical Presses Work

Mechanical presses use a motor to spin a large, heavy flywheel, which stores kinetic energy. When the operator activates the press, a clutch engages, connecting the spinning flywheel to a crank or eccentric gear system. This system converts the rotational energy into a linear motion, driving a ram down in a fixed-length stroke to perform the stamping operation. The force exerted by a mechanical press varies throughout its stroke, reaching its maximum tonnage near the bottom.

Key Features:

• Speed and Efficiency: Characterized by rapid cycle times, making them highly efficient for mass production.
• Fixed Stroke Length: The distance the ram travels is determined by the mechanical design of the crankshaft and is not easily adjustable.
• High Production Rates: Capable of achieving hundreds of strokes per minute in some applications.

Advantages:

• Fast Cycle Times: Ideal for high-volume, continuous production runs of simple parts like blanks or shallow forms.
• Cost-Effective: Generally have a lower initial investment cost and are energy-efficient for repetitive, high-speed tasks.
• Reliable and Repeatable: The fixed stroke ensures exceptional consistency and repeatability for simple forming and blanking operations.

Limitations:

• Limited Flexibility: The fixed stroke length and pre-set shut height make them unsuitable for jobs requiring variable force or depth, such as deep-drawing.
• Less Suitable for Deep-Draw: Since maximum force is only available at the very bottom of the stroke, they are not ideal for processes that require sustained pressure.
• Higher Maintenance for High-Speed Operations: The high number of moving parts (clutch, brake, bearings) can lead to significant wear and tear, requiring regular maintenance.

4. Overview of Hydraulic Stamping Presses

How Hydraulic Presses Work

Hydraulic presses operate on the principle of fluid dynamics, as described by Pascal’s law. An electric motor drives a pump that moves hydraulic fluid into a cylinder, pushing against a piston. This piston is connected to the ram, and the force it exerts is determined by the fluid pressure and the surface area of the piston (F = P × A). By controlling the fluid pressure and flow rate, an operator has complete control over the force and speed of the ram throughout its stroke.

Key Features:

• Adjustable Stroke and Pressure: The stroke length, speed, pressure, and dwell time can be precisely controlled and adjusted for each job.
• Greater Control Over Force Application: A hydraulic press can deliver its full rated tonnage at any point in the stroke, not just at the bottom.
• Versatility: Capable of handling a wide range of materials and part complexities.

Advantages:

• Ideal for Complex Forming: The ability to apply sustained force throughout the stroke makes them perfect for deep-drawing, coining, and intricate forming processes.
• Precise Control: Unmatched control over ram speed and force protects dies from damage and allows for the forming of challenging materials.
• Lower Maintenance: With fewer moving parts compared to the mechanical drivetrain, they often require less maintenance, though the hydraulic system itself needs care.

Limitations:

• Slower Cycle Times: The time required to pump fluid makes them inherently slower than mechanical presses, reducing output in high-volume scenarios.
• Higher Initial Cost: Hydraulic presses are generally more expensive to purchase due to the complexity of their hydraulic systems.
• Potential for Hydraulic Fluid Leaks: Leaks can create safety hazards, lead to environmental concerns, and require diligent maintenance to prevent.

5. Key Factors in Choosing Between Mechanical and Hydraulic Presses

Selecting the right press requires a careful analysis of your specific application. Here are the critical factors to consider:

Production Volume:
Mechanical: The clear winner for high-volume, high-speed production of consistent parts.
Hydraulic: Better suited for short runs, prototypes, or low-to-medium batch sizes where flexibility is more important than raw speed.

Material Type and Thickness:
Mechanical: Excellent for standard-gauge sheet metals.
Hydraulic: Superior for forming thick, high-strength materials (like those used in aerospace) that require sustained force.

Part Complexity:
Mechanical: Best for simple, relatively flat parts created through blanking, piercing, or shallow forming.
Hydraulic: Essential for parts with deep draws, complex curves, or features that require coining, as it can apply full force throughout the entire stroke.

Precision Requirements:
Mechanical: Offers excellent repeatability for simple operations due to its fixed stroke.
Hydraulic: Provides superior control over the forming process, which can lead to higher precision for complex parts by managing ram speed and pressure.

Cost Considerations:
Initial Investment: Mechanical presses are typically less expensive.
Maintenance: Mechanical presses may have higher maintenance costs for their clutch/brake systems in high-speed applications. Hydraulic presses require upkeep of seals, pumps, and fluid, but have fewer mechanical wear parts.
Operational Costs: Varies by application. A continuously running mechanical press flywheel can waste energy, whereas modern hydraulic presses often use power only on demand during the stroke.

Energy Efficiency and Environmental Impact:
Modern servo-driven presses (both mechanical and hydraulic) offer significant energy savings. For hydraulic presses, the potential for oil leaks is an environmental and safety consideration that must be managed.

6. Common Questions and Concerns Addressed

• Which press is better for high-speed production?
  Mechanical presses are significantly faster and are the standard for high-volume, automated stamping lines.
• Can hydraulic presses handle heavy-duty materials?
  Yes, they excel at it. Their ability to deliver full tonnage throughout the stroke makes them ideal for forming thick plates and high-strength alloys.
• How do maintenance requirements compare?
  It’s a trade-off. Mechanical presses require maintenance on flywheel bearings, clutches, and brakes. Hydraulic presses need attention to seals, hoses, pumps, and fluid cleanliness. The complexity of the press and its usage intensity are the determining factors.
• What are the energy consumption differences?
  Traditionally, mechanical presses were seen as more efficient for continuous work. However, modern hydraulic systems with on-demand pumps and servo-hydraulic technology can be more energy-efficient, especially in applications with long idle times or variable loads.
• Which press is more suitable for small-scale or custom jobs?
  Hydraulic presses are the clear choice due to their flexibility. The ease of adjusting stroke, pressure, and speed allows a single press to handle a wide variety of custom jobs without complex setup changes.
• How to balance cost and performance for specific stamping needs?
  Calculate the total cost of ownership. For a single, high-volume part, the speed of a mechanical press will likely provide the lowest cost-per-part despite maintenance. For a varied product mix, the higher initial cost of a hydraulic press is often justified by its versatility and reduced setup time.

7. Case Studies/Examples

Example 1: Automotive Part Production

Application: A major automotive supplier needs to produce 500,000 identical steel brackets per year.
Choice: A progressive die running in a high-speed mechanical press.
Reasoning: The high volume and consistent part geometry make speed and repeatability the top priorities. The mechanical press delivers the lowest cost-per-part in this scenario.

Example 2: Aerospace Component Manufacturing

Application: An aerospace manufacturer is forming a complex fuselage component from a thick titanium alloy.
Choice: A large-tonnage hydraulic press.
Reasoning: The material requires immense, sustained force to prevent cracking. The precise control over ram speed and pressure offered by the hydraulic press is essential for a successful, defect-free part.

Example 3: Small-Scale Custom Stamping

Application: A job shop produces custom metal enclosures for various clients, with batch sizes ranging from 50 to 1,000 units and varying material thicknesses and draw depths.
Choice: A versatile hydraulic press.
Reasoning: The need for flexibility is paramount. The ability to quickly adjust the stroke length and tonnage for different jobs makes the hydraulic press far more efficient than a mechanical press, which would be difficult to reconfigure for each custom order.

8. Practical Tips for Decision-Making

1. Assess Your Production Needs: Quantify your average batch size, required cycle times, material types, and the complexity of your parts.
2. Consult with Experts: Talk to press manufacturers and industry consultants. Provide them with part drawings and production goals to get their expert recommendations.
3. Test Presses for Specific Applications: If possible, arrange for a trial run of your material and die on a similar press to validate its performance before purchasing.
4. Consider Future Scalability: Don’t just buy for today’s needs. Think about your company’s future direction. Will you need more flexibility for new products, or will you specialize in high-volume production?

9. Conclusion

The debate between mechanical and hydraulic stamping presses is not about which is universally better, but which is specifically right for your application. Mechanical presses are the sprinters of the industry, offering unparalleled speed and repeatability for high-volume production of simpler parts. Hydraulic presses are the versatile powerlifters, providing adjustable force and precise control for complex, deep-draw, and heavy-duty forming operations.

By carefully evaluating your production volume, part complexity, material requirements, and budget, you can align your choice of press with your specific operational needs. This strategic decision is fundamental to achieving efficiency, quality, and profitability in your stamping processes.
